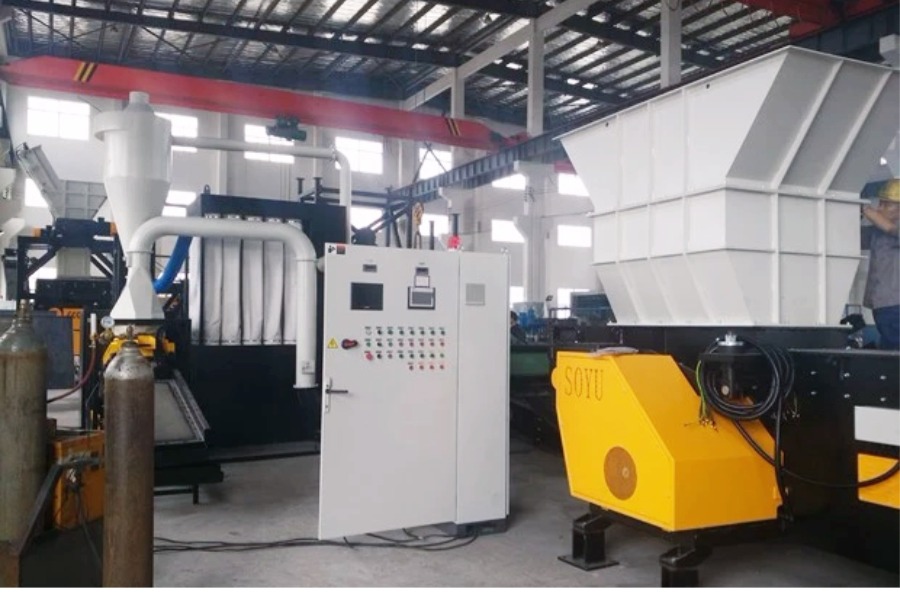

COPPER WIRE RECYCLING & GRANULATING MACHINE

Key Features

• Self-Developed & Reliable: The core separation system is independently developed by our team. It features a scientific design, smooth operation, and a low failure rate.

• Highly Cost-Effective: It combines heavy-duty performance with affordable operating costs, ensuring a fast return on your investment.

• Single-Feeding Hopper: The extra-large material volume allows operators to feed the machine just once for a complete cycle, reducing daily workload.

• Eco-Friendly & Dust-Free: The entire production progress is completely dust-free, creating a safe work environment with zero secondary pollution.

• Ready to Use Out of the Box: Easy delivery, quick installation, and fast test running mean you can start production right after receiving the machine.

• Customization Available: We provide tailor-made, custom products built exactly to your specific requirements and factory layout.








Parameters

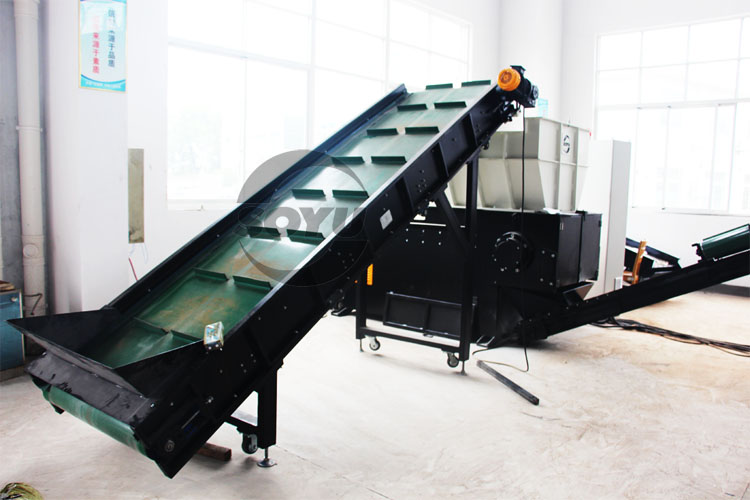

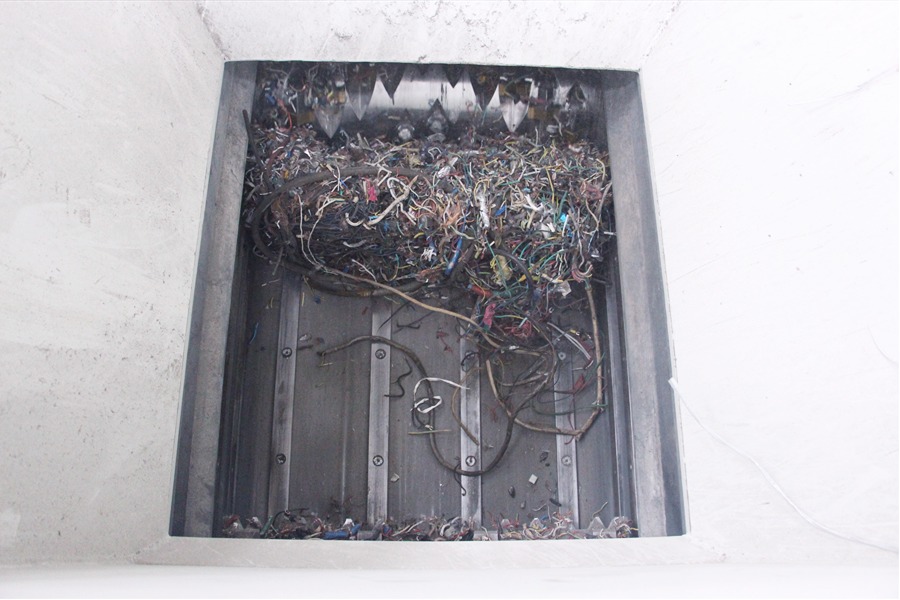

1. Single shaft shredder  The cable shredder is mainly used for the first stage---shredding the cable. The power voltage is customizable according to your need. Specification Power (Kw): 17.2 Rotor Blade Quantity: 24 Stator Blade Quantity: 4 Mesh Diameter (mm): Φ40 Rotating Speed (rpm): 83 Shaft Diameter (mm): Φ220 Dimension (mm): 1585 (L) × 1100 (W) × 1800 (H)

2. Cable Granulator  It is used for cutting, shearing, and tearing the cable in our cable recycling plant. Specification Power (Kw): 45 Stator Blade Quantity (PCS): 10, Rotor Blade Quantity (PCS): 4 Mesh Diameter (mm): Φ12 Rotating speed (rpm): 526 Shaft Diameter (mm): Φ420 Dimension (mm): 1800 (L) × 1800 (W) × 2400 (H) Voltage: customizable

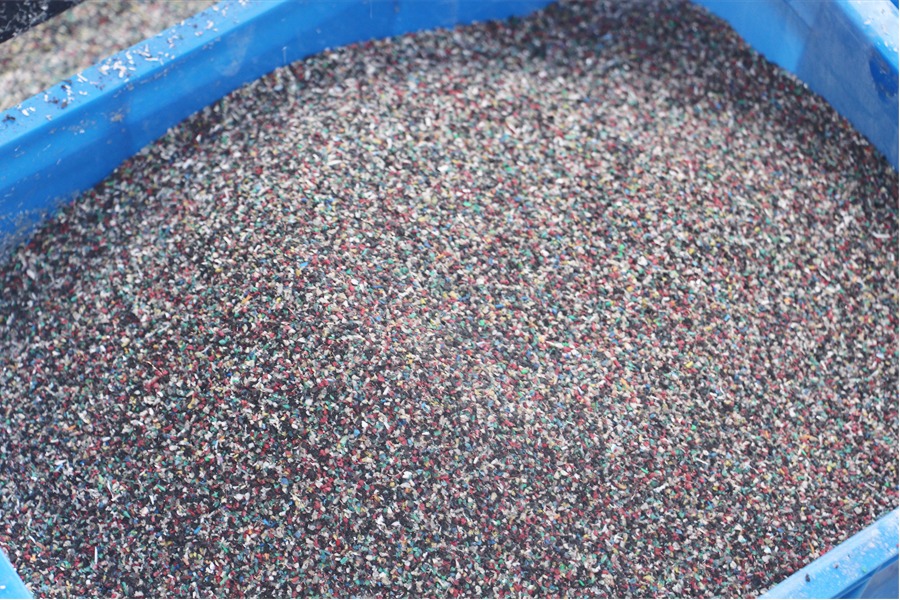

3. Gravity Separator   It is mainly used for retrieving the metals with different density from the cable granules and separating the non-metal granules. Specification Power (Kw): 7.5 Mesh Diameter (mm): 1000 (W) × 1500 (L) Dimension (mm): 2100 (L) × 1200 (W) × 1700 (H) Voltage: customizable      4. Dust Removal System It is mainly for the dust removal during the cable recycling progress Specification Power (Kw): 8.6 Dimension (mm): 1000 (L) × 1000 (W) × 3000 (H)

Product Highlights

High-Efficiency Copper Separation

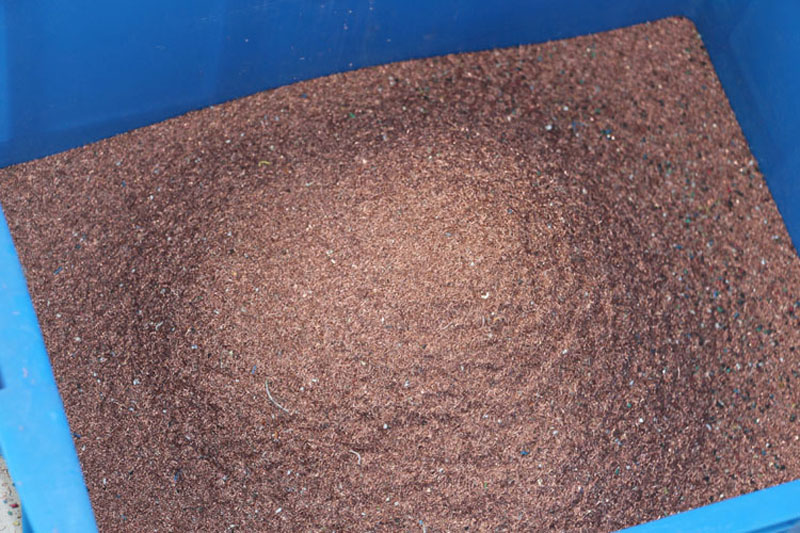

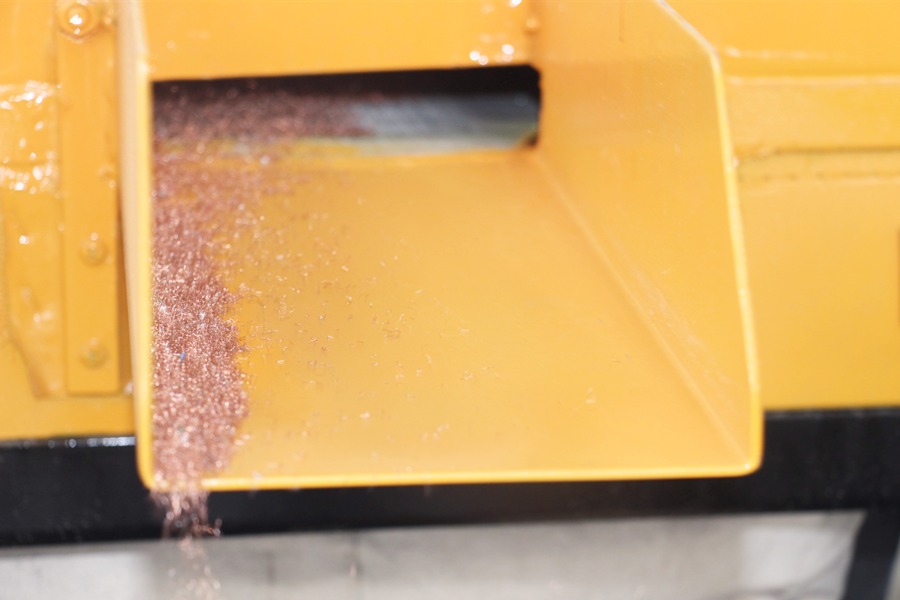

The Copper Wire Recycling Machine is equipped with cutting-edge technology that efficiently separates copper from insulation materials, ensuring maximum metal recovery with minimal contamination. This ultra-clean sorting guarantees a higher resale value and significantly increases revenue for your business.

Robust and Durable Design
Constructed with high-quality, wear-resistant materials, this machine is built to withstand heavy-duty use in harsh industrial environments. Its durable engineering guarantees long-lasting, stable performance, drastically reducing maintenance costs and downtime for large-scale recycling operations.

Easy-to-Operate System
Designed with user-friendliness in mind, the equipment features an intuitive control panel, ensuring that operators can manage the system with minimal training. The entire processing system is also highly customizable to meet the specific requirements of your factory layout and material types.

Environmentally Friendly Production
The machine is smartly engineered to minimize environmental impact. By optimizing energy consumption and maximizing raw material recovery, it delivers a clean, dust-free recycling process that fully aligns with modern green industry and environmental standards.
