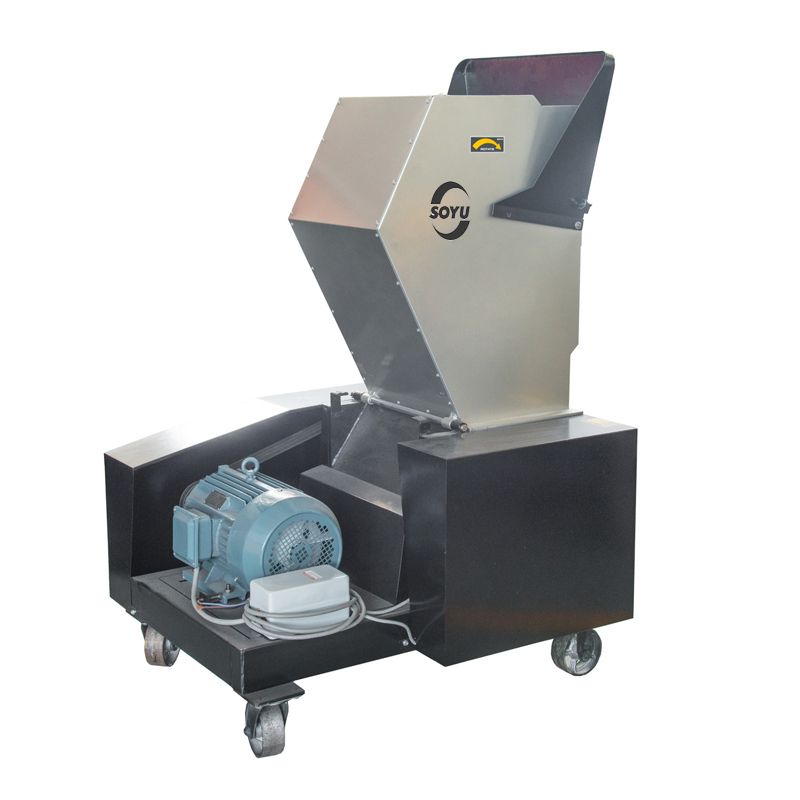

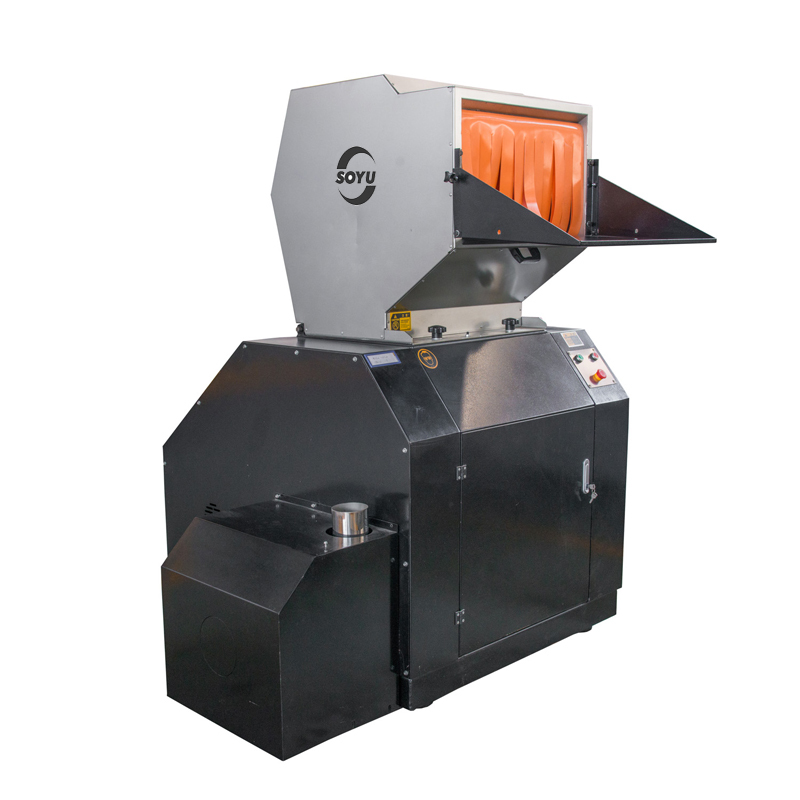

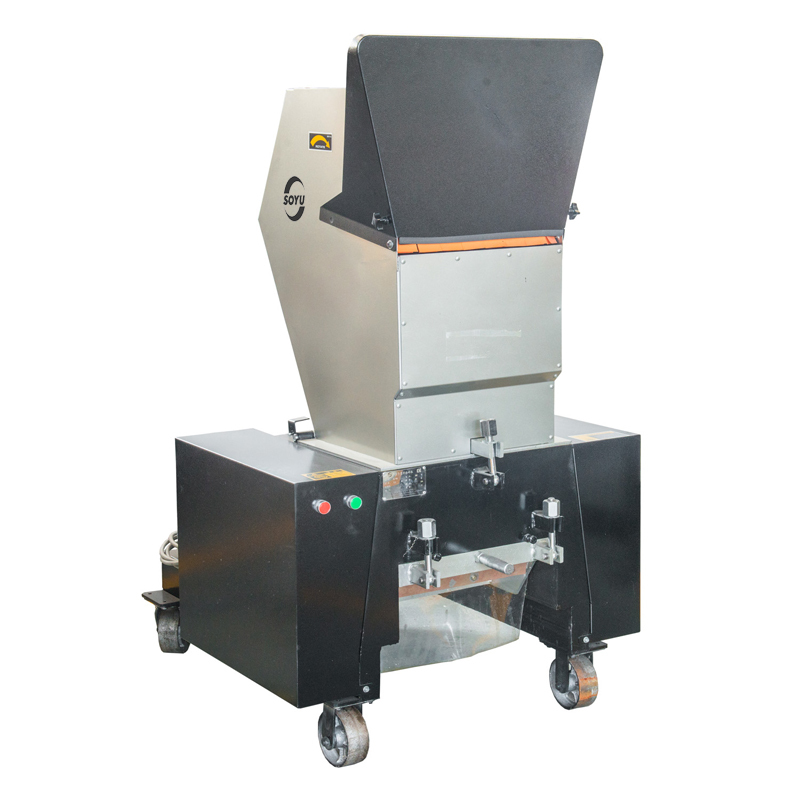

POWERFUL CRUSHER
1、 Cutting tools made of high chromium tool steel,gap adjustable and durable.
2、 The large beltwheel and flywheel increase the impact moment and capacity.
3、 Heavy load bearing and dust-proof design,with sound-proof plate,can prevent vibration and noise.
4、 Interlock safety device protect the operator and machine.
5、 The alternating cutting effectively reduce dust and save power.
6、 motor designed with overload protection,which automatically shut down when it enters protection mode.
7、 Equipped with castors,easy to move or place.
8、 Detachable design for easy maintenance.
BLADE ROLLER
|

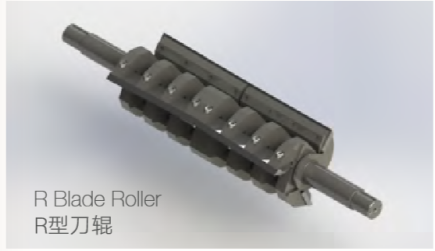

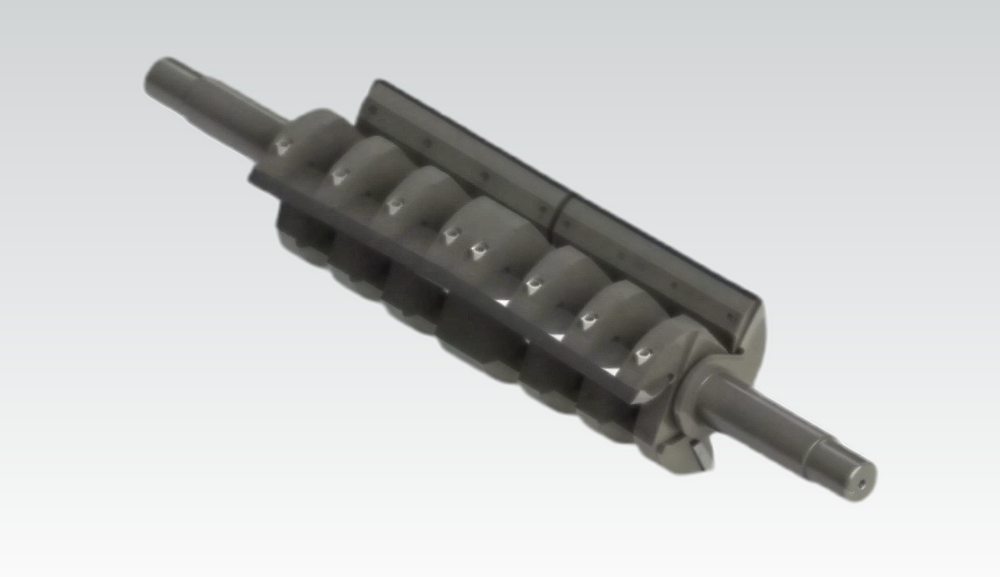

1、“R" Front-set “V” shape blade roller: to bear large cutting impact; only two cutting points between blade roller and stator blades, suitable for crushing hard, thick-wall pipe and thick sheets etc. |
|

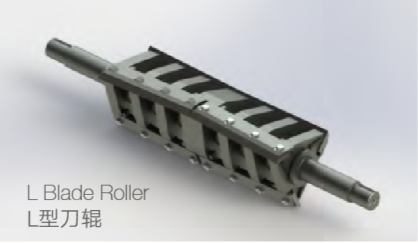

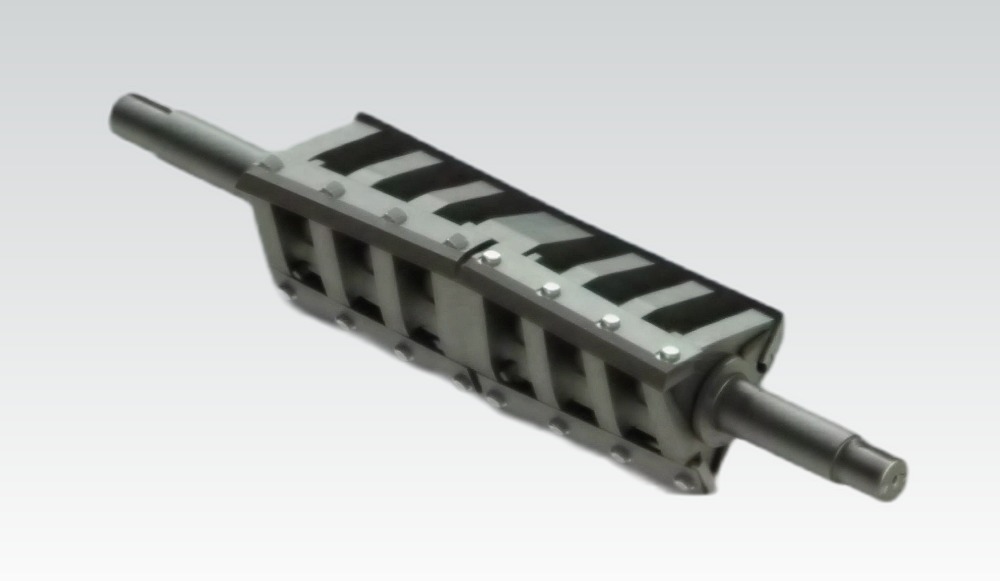

2、“L" Back-set “V” shape blade roller: with large blade space, easy for material being cut rapidly; only two cutting points between blade roller and stator blades, good for reducing cutting impact and crushing bottle, pipe and film etc. |
|

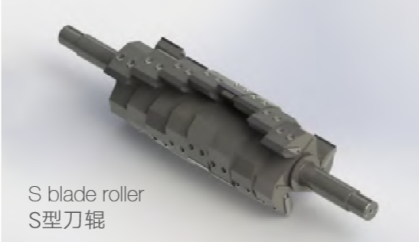

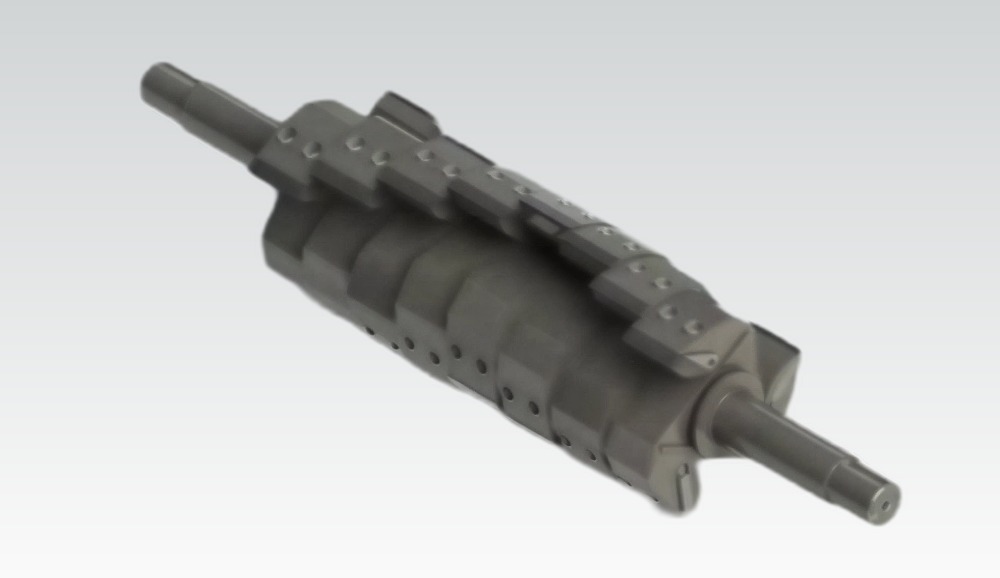

3、“S" Solid blade structure: efficient prevention materials from falling into rotating blades; maximal bearing of cutting impact; suitable for crushing very hard materials, such as glue block, thick-wall pipe and thick plate etc. |
| Model | SQL400 | SQL600 | SPL800 | |
| Power （kw） | 7.5 | 15 | 30 | |
| Roto speed （rpm） | 580 | 500 | 440 | |
| Quantity of staggered rotation knives （PCS） | 12 | 18 | 24 | |
| Quantity of fixed knives （PCS） | 2 | 4 | 4 | |
| Diameter of rotor （mm） | 245 | 290 | 400 | |
| Inlet size （mm） | 400*230 | 600*300 | 800*400 | |
| Screen diameter （mm） | 10 | 12 | 12 | |
| Manual container | = | = | = | |
| Dimension （L*W*H）（mm） | 1.32*0.86*1.46 | 1.70*1.15*1.88 | 2.22*1.38*2.38 | |
| Weight （kg） | 430 | 850 | 1800 | |
| REMARK ：1)” =”Means Standard,”O”Means Options |
