Core Value Propositions
1. Overcoming Raw Material Scarcity
As global regulations on waste paper imports tighten and domestic waste sorting expands, the quality of available OCC (Old Corrugated Containers) fluctuates. SOYU’s system is engineered to process diverse grades of recycled paper, turning mixed waste into high-value pulp feedstock.
2. Advanced Dry Pulping Technology
Our Dry Pulping Process eliminates the massive water consumption associated with traditional methods at the initial stage.
- Energy Efficiency: Reduces operational energy consumption by [X]% year-on-year.
- Fiber Preservation: Precision shredding ensures optimal fiber length for downstream paper making.
3. Large-Scale Capacity & Industrial Durability
Designed for 24/7 heavy-duty operation, the SOYU recycling line maximizes throughput within a compact footprint.High Torque Shredding: Features SOYU’s signature single/double shaft shredders to handle bulky OCC bales with ease.
- Smart Automation: Integrated PLC control system with auto-reverse function to prevent overloads and minimize downtime.
|

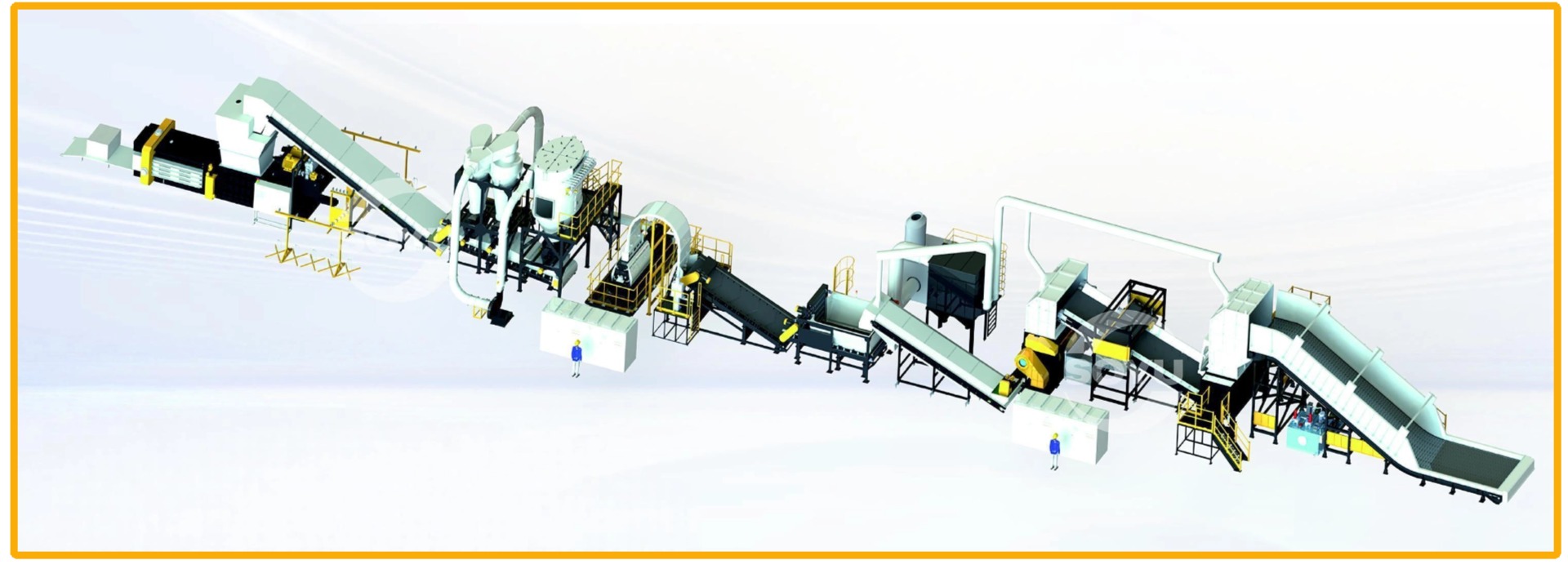

SOYU Waste Paper Dry Pulping Line: The "Waste-to-Treasure" Turnkey Solution
SOYU has established a proven track record in manufacturing high-performance waste paper crushing and dry pulp treatment systems. Our ingenious dry process provides a sustainable alternative to traditional pulping, characterized by the following precision steps:
- Material Pre-treatment: Streamlining input for maximum throughput.
- Industrial Shredding: High-torque reduction of bulky OCC/Waste paper.
- Mechanical Dry Pulping: Extracting high-quality fibers without heavy water usage.
- Pulse Jet Dust Collection: Ensuring a dust-free, Eco-friendly workspace.
- Magnetic Ferrous Removal: Eliminating metal contaminants for ultra-pure pulp.
- Hydraulic Baling: Compacting final dry pulp for cost-effective logistics.
|

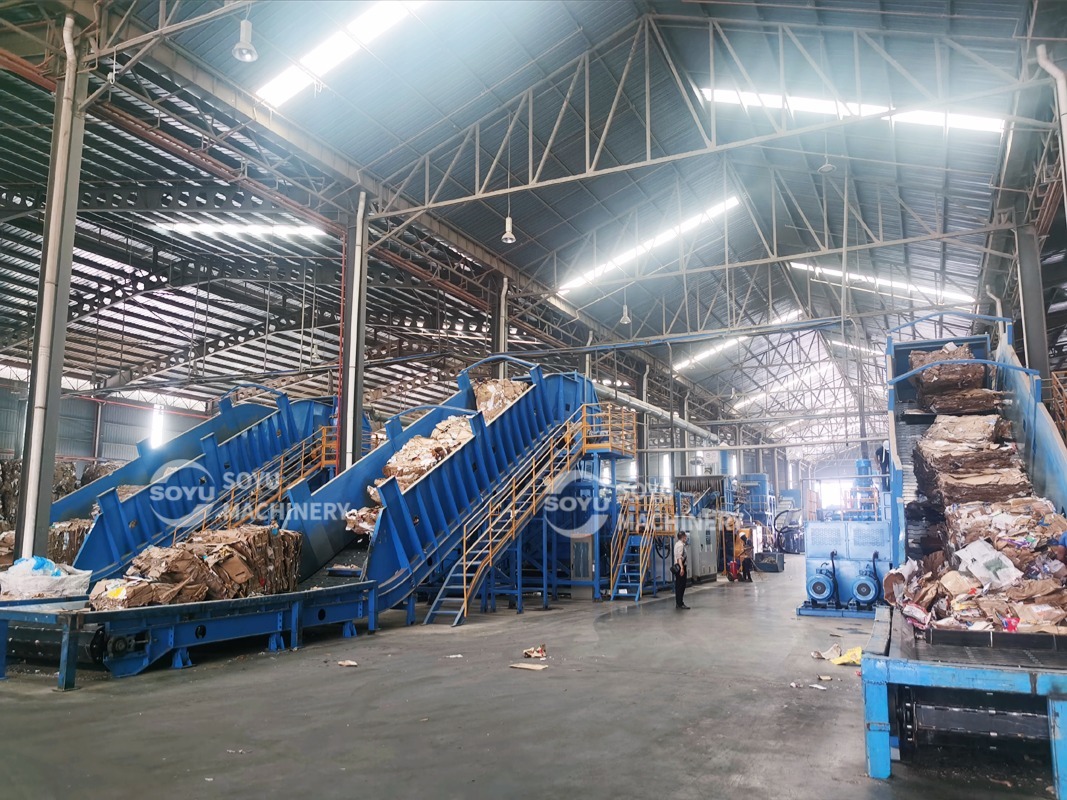

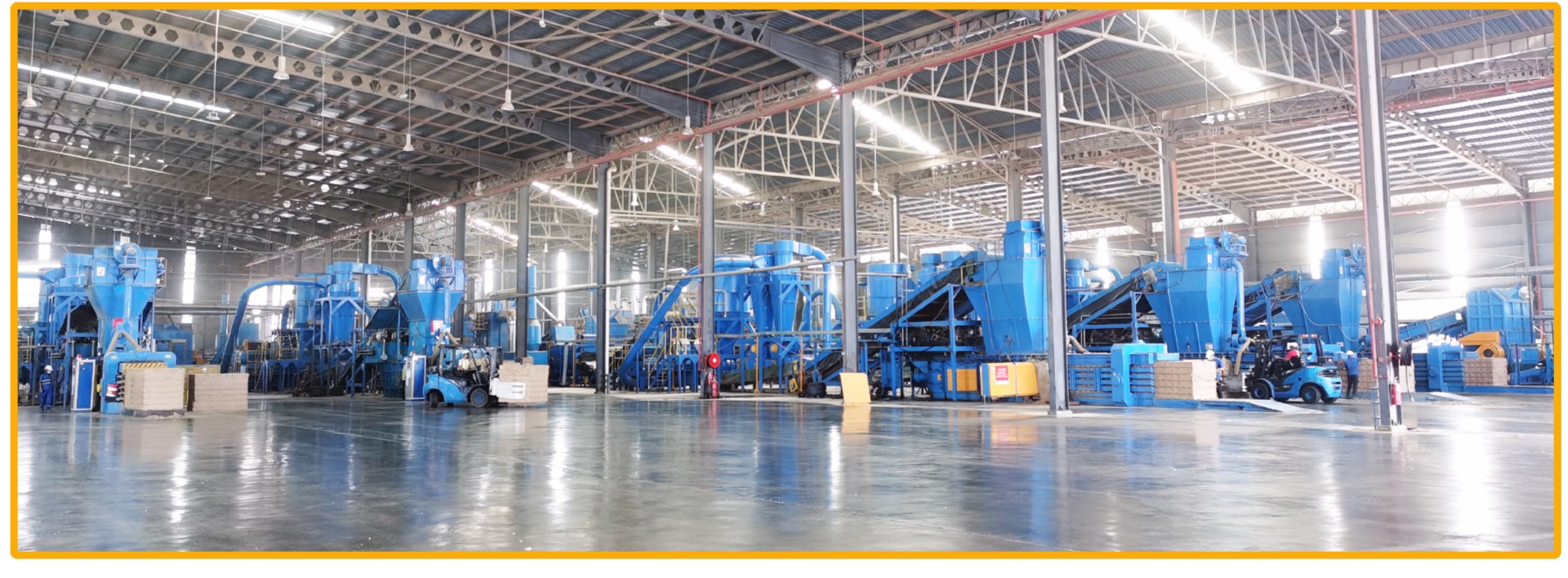

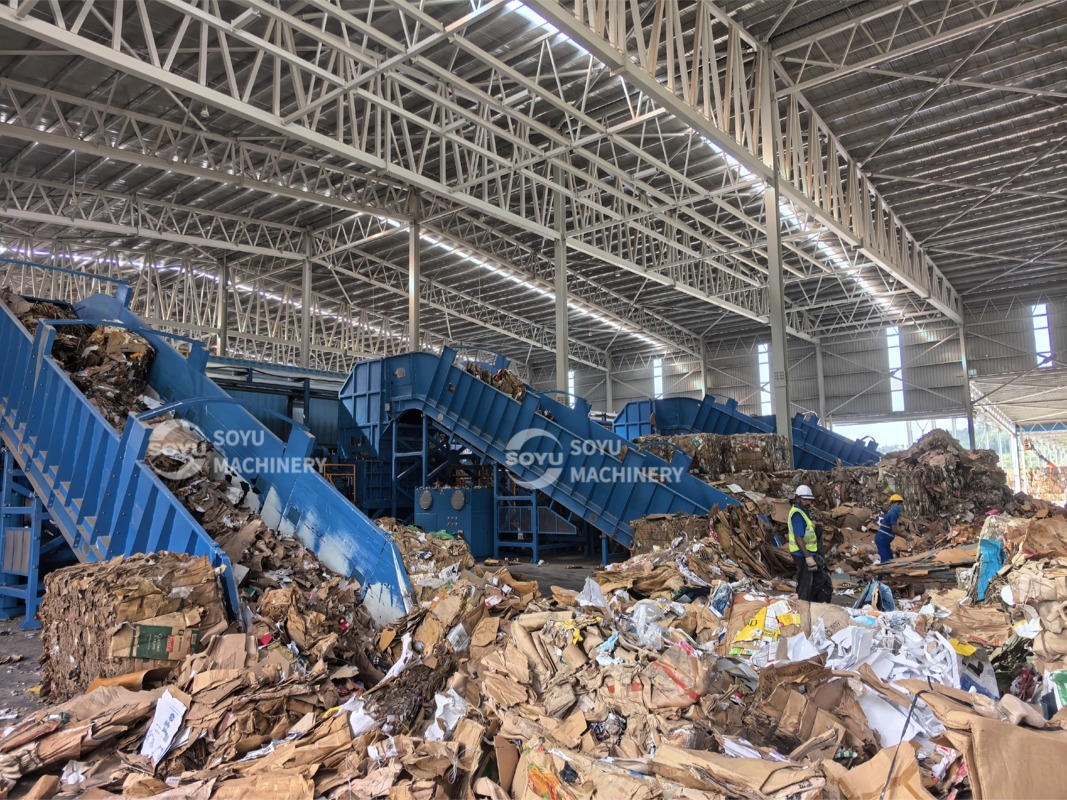

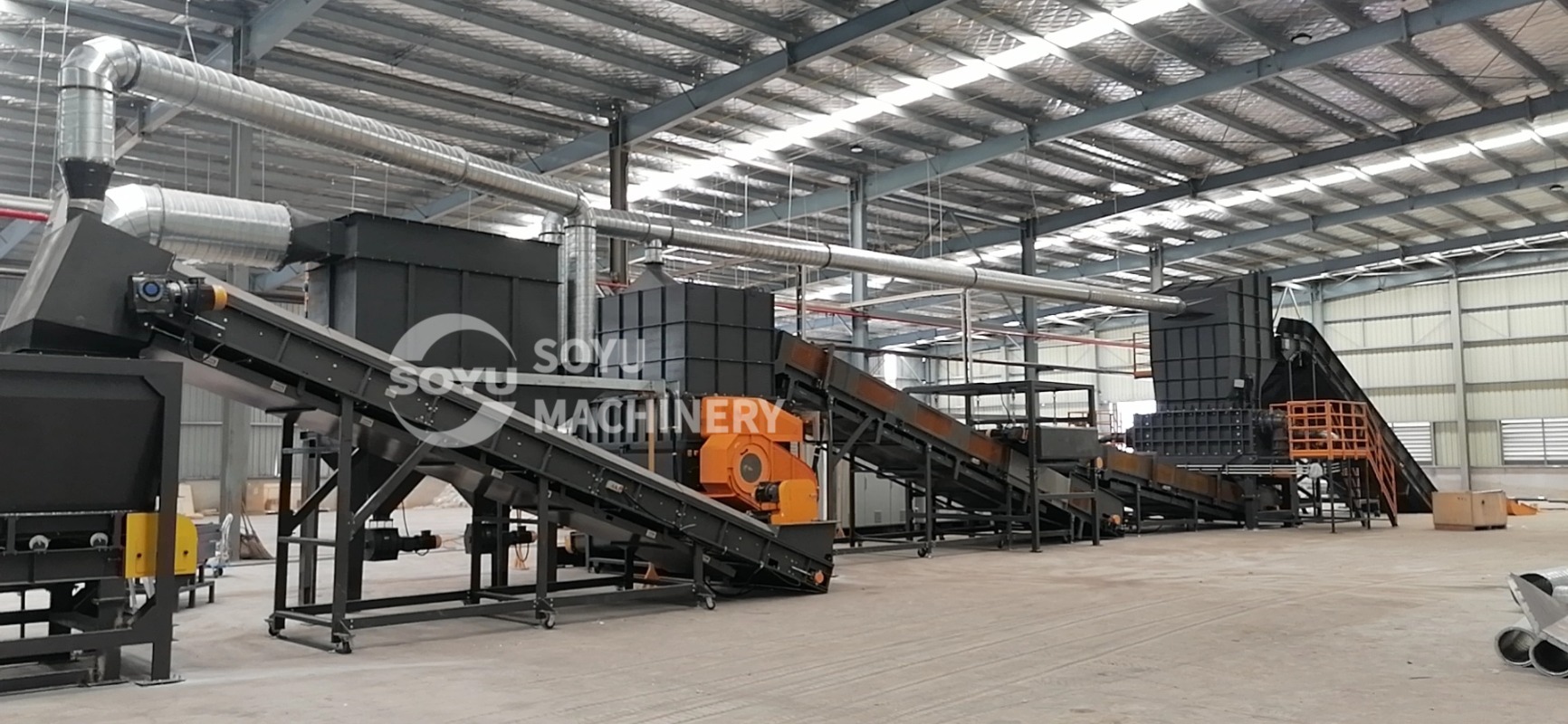

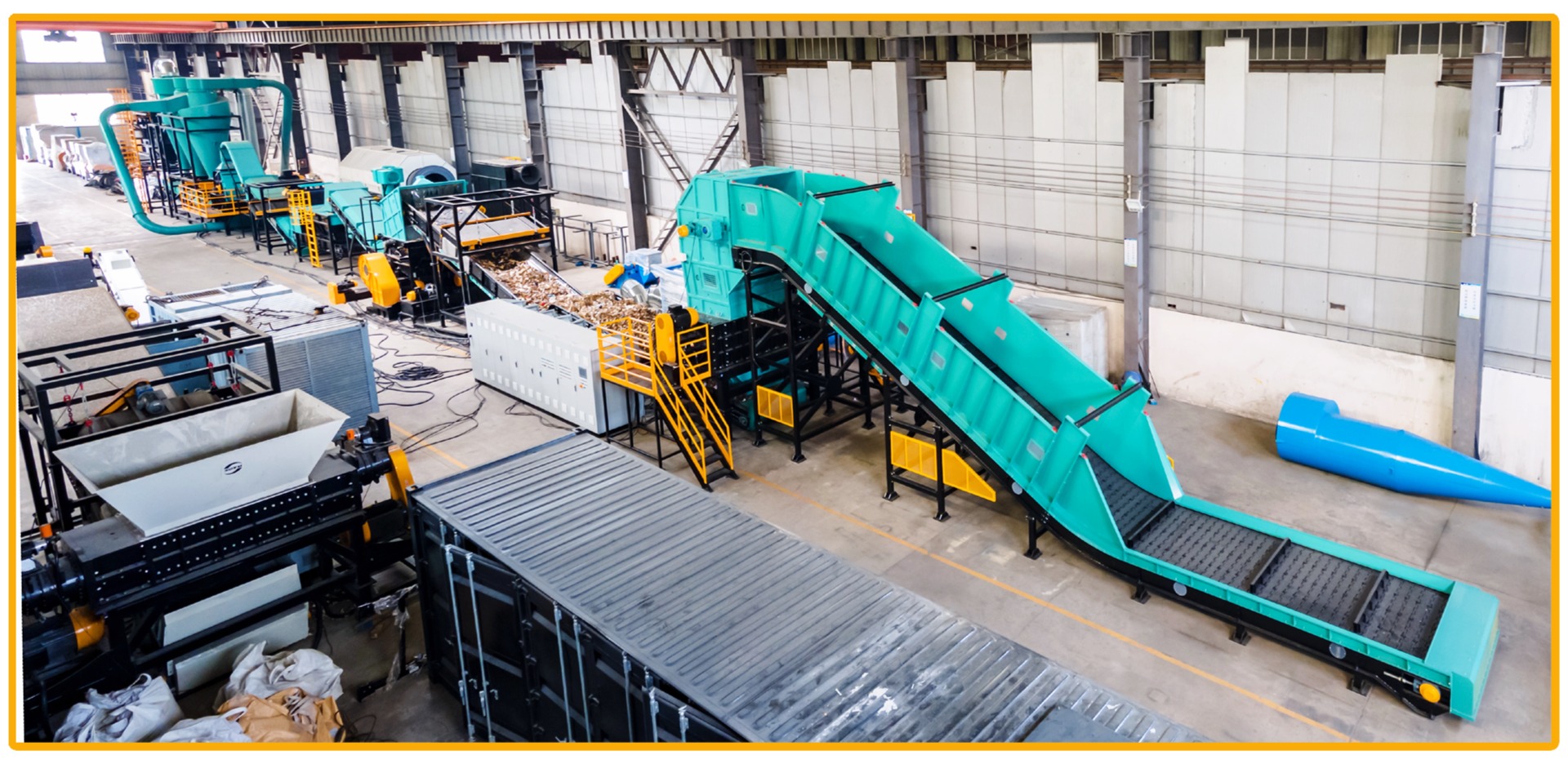

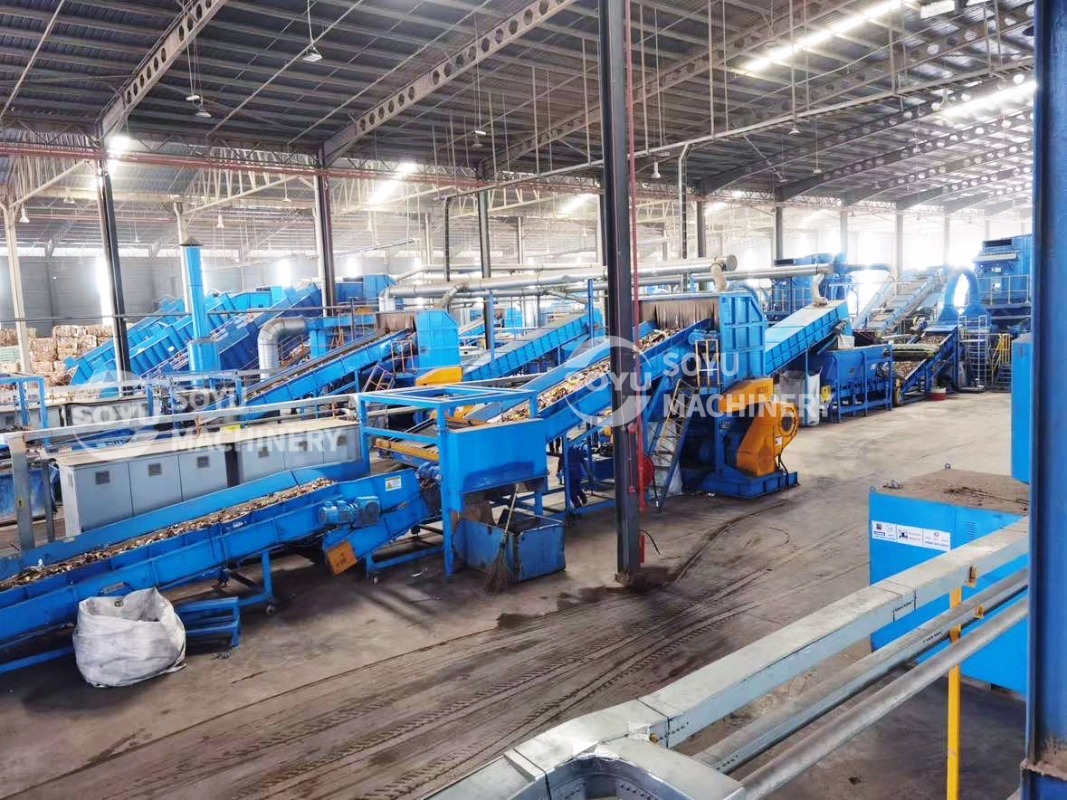

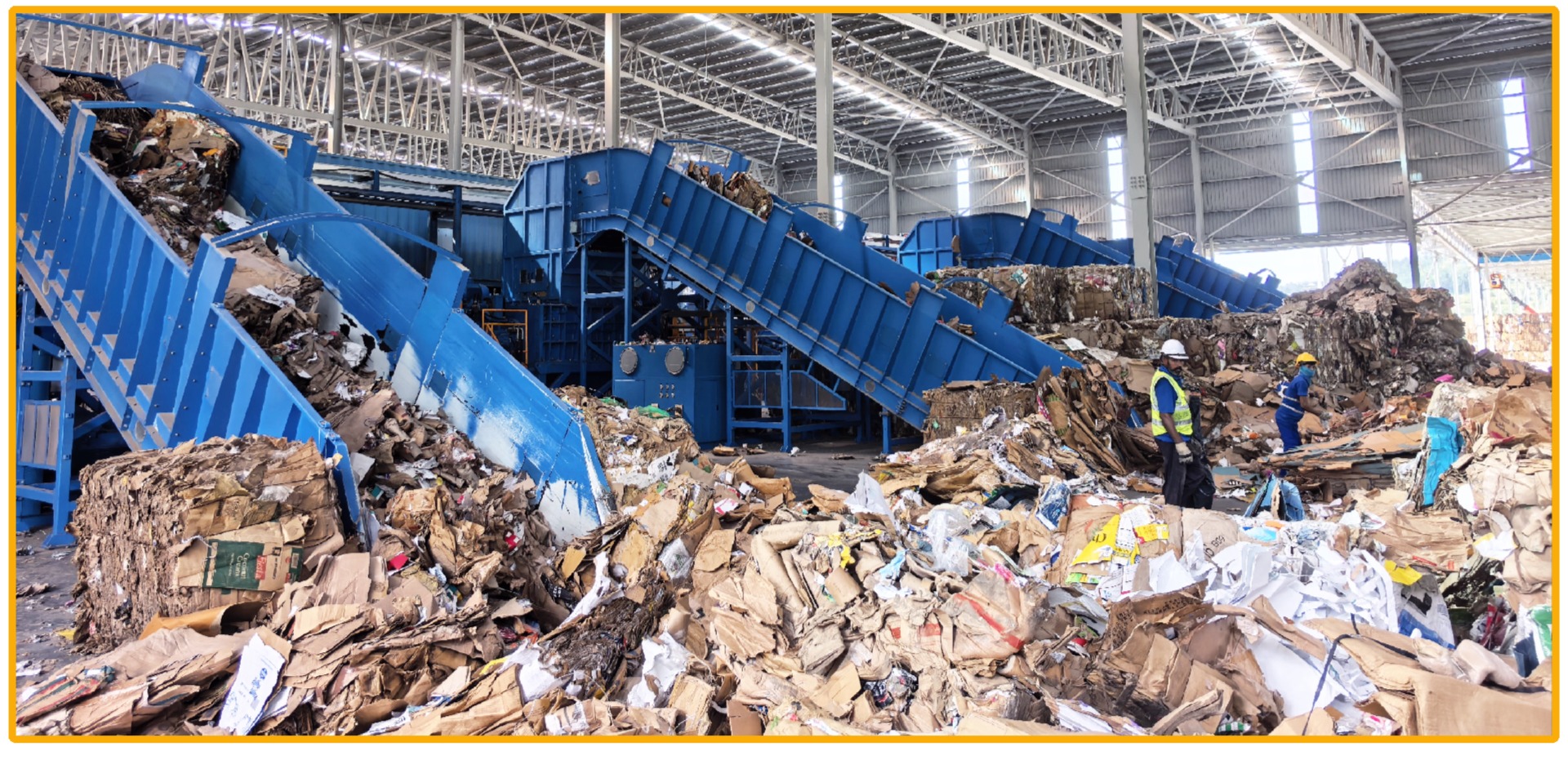

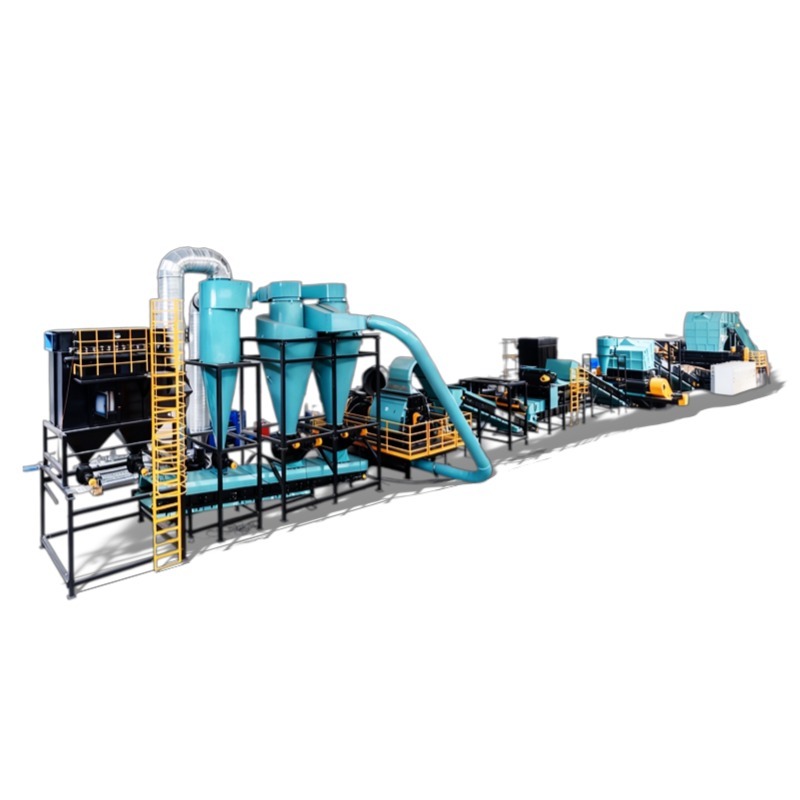

SOYU OCC Paper Dry Pulping & Recycling Line
Industry Background
The problem of recycled paper raw materials is increasingly prominent. At present, the quality and scale of recycled paper in many regions are difficult to meet the needs of paper enterprises. With the promotion of garbage classification, the existing high-quality recycled paper supply is difficult to meet the needs of large-scale production, and more recycled pulp is needed as raw materials.
SOYU's waste paper and dry pulp crushing and recycling system has greatly reduced the energy consumption of customers year on year. This high-capacity processing line enables the production system to play a greater role even within limited facility space.
1. Control System
The intelligent automatic control system manages all production units across the entire line, including one-key start/stop, status monitoring, data analysis, fault diagnosis, personalized data reporting, and alarm linkage. Key equipment is equipped with intelligent sensing devices to monitor operation data and provide real-time feedback to the control system.
2. Primary Shredder
The heavy-duty four-shaft shredder features a large shredding chamber design that enables the feeding of entire hydraulic-packed waste paper bales. The loose discharge ensures high efficiency for subsequent shredding stages. A powerful hydraulic system, powered by a German-brand Linde plunger pump, provides adaptive capability to automatically adjust rotation speeds according to material conditions.
3. Secondary Shredder
The heavy-duty single-shaft shredder delivers excellent performance with high speed and stable capacity. It features a longitudinal shredding chamber and an enlarged pressing plate to ensure maximum material contact with the blade roller. A special protection device is designed to quickly disconnect power when encountering non-shreddable objects, protecting the rotor and reducing secondary injury. The rotor blades are made of high-quality alloy steel with titanium plating, significantly extending their service life.
4. Dust Removal System
The pulse structure dust removal system automatically collects dust generated during the crushing process, minimizing on-site airborne particles and improving workshop cleanliness.
5. Air Separation Feeding Device and Grinding Aggregate System
The special negative pressure structure design ensures uniform material conveyance. High-density materials are removed through specific gravity differences. The system utilizes high-speed rotary crushing, and the elastic screen pressing structure allows for convenient maintenance and replacement. After materials settle through the double rotating air duct structure, they are discharged and collected centrally by a rotary valve.
6. Fully Automatic Baler
The system adopts a constant power variable hydraulic system with automatic binding. It provides high packing density and adjustable package lengths, which significantly reduces storage and transportation costs.
|
