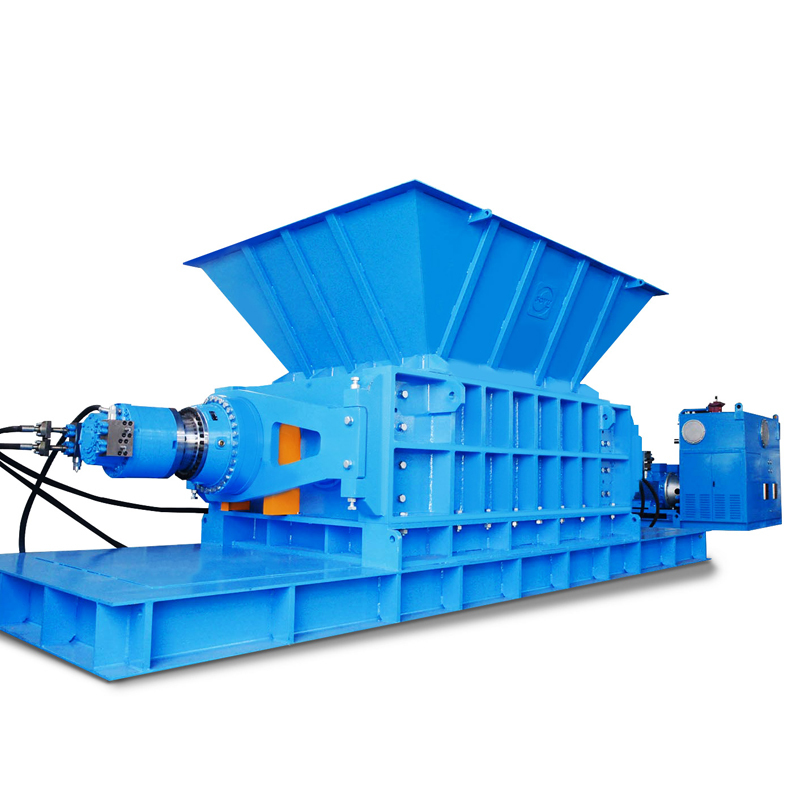

The SOYU Twin-shaft industrial shredder (also known as a heavy-duty double shaft shredder) is a high-efficiency, low-speed, high-torque solution designed for heavy-duty volume reduction. Engineered for maximum energy saving, this industrial shredding machine starts at a power consumption of just 1.5kW without compromising performance.
Streamlined Dual-Shear Cutting Principle Unlike screened units that are prone to clogging, this dual-shear shredder utilizes two counter-rotating blades to grab, tear, and pull material directly through the hopper for immediate discharge. While providing a varied output size, the twin-shaft industrial shredder excels in:
|
|
Precision-Engineered Rotor and Heavy-Duty Blades
At the heart of our twin-shaft industrial shredder is a high-strength rotor system designed for maximum shearing force.
|
 |
 |
High-Performance Drive Train & Intelligent Control
The SOYU twin-shaft industrial shredder features a robust drive train engineered for maximum operational stability and torque efficiency:
|
|
Advanced Hydraulic Ram for Twin-Shaft Industrial Shredders
Maximize Throughput for Bulky & Hollow Materials While standard twin-shaft industrial shredders often struggle with materials that "float" or "bridge" in the hopper, the SOYU Hydraulic Ram (Pusher) system provides a definitive solution.
|
 |
 |
 |
 |
 |
| Model | Motor power(kw) | Main blade rotation diameter(mm) |
Main blade rotation diameter(mm | Main blade quantity(pcs) | External dimensions(mm) | Equipment weight(kg) |
| SYU3380 | 2x22KW | 50mm | φ430mm | 16 | 3000x1250x2150mm | 4700kg |
| SYU33100 | 2x30KW | 50mm | φ430mm | 20 | 3000x1250x2150mm | 5200kg |
| SYU33120 | 2x30KW | 50mm | φ430mm | 24 | 3000x1250x2150mm | 5700kg |
| SYU41100 | 2x30KW | 50mm | φ534mm | 20 | 3660x1700x2650mm | 9000kg |
| SYU41140 | 2x37KW | 50mm | φ534mm | 28 | 3660x1700x2650mm | 10000kg |
| SYU41160 | 2x45KW | 50mm | φ534mm | 32 | 3660x1700x2650mm | 11000kg |
| SYU50130 | 2x55KW | 50mm | φ650mm | 32 | 4200x2100x3000mm | 13000kg |
| SYU50180 | 2x55KW | 50mm | φ650mm | 36 | 4200x2100x3000mm | 14000kg |
| SYU50180 | 2x75KW | 75mm | φ800mm | 24 | 5400x2400x3700mm | 20000kg |
| SYU61210 | 2x90KW | 100mm | φ800mm | 21 | 5400x2400x3700mm | 23000kg |
| SYU80210 | 2x225KW | 150mm | φ980mm | 14 | 7100x2900x4200mm | 26000kg |
| SYU80250 | 2x225KW | 150mmφ980mm | φ980mm | 17 | 7100x2900x4200mm | 29000kg |
| SYU80300 | 2x225KW | 150mm | φ980mm | 20 | 7100x2900x4200mm | 32000kg |
