PLASTIC FILM & WOVEN BAG RECYCLING SHREDDER

Home > PRODUCTS LIST > Industrial Shredder By Application > Plastic Film Shredder

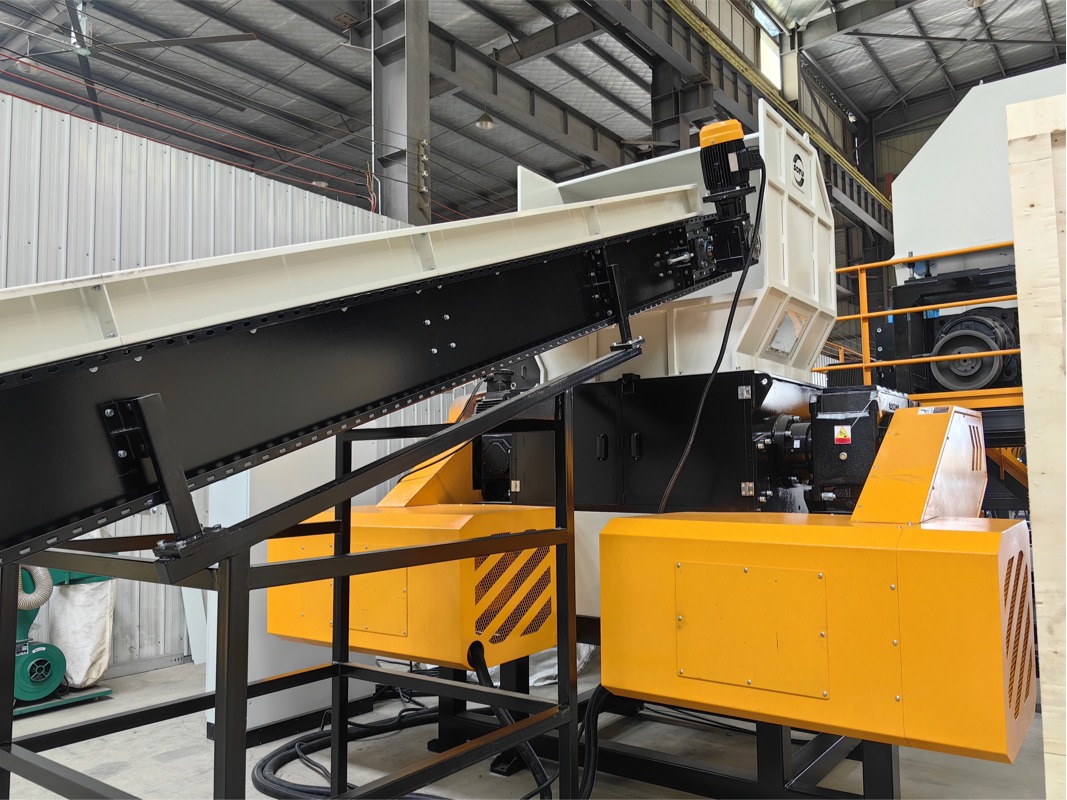

INDUSTRIAL PLASTIC FILM AND PP WOVEN BAG SHREDDER MACHINE

Name: INDUSTRIAL PLASTIC FILM AND PP WOVEN BAG SHREDDER MACHINE
Brand: SOYU Machinery
Availability: InStock
Rating: 5 (1 reviews)

Anti-Winding Blade & Rotor Design: Specifically engineered to prevent flexible plastic films and woven bags from wrapping around the shaft, reducing downtime by 90%.

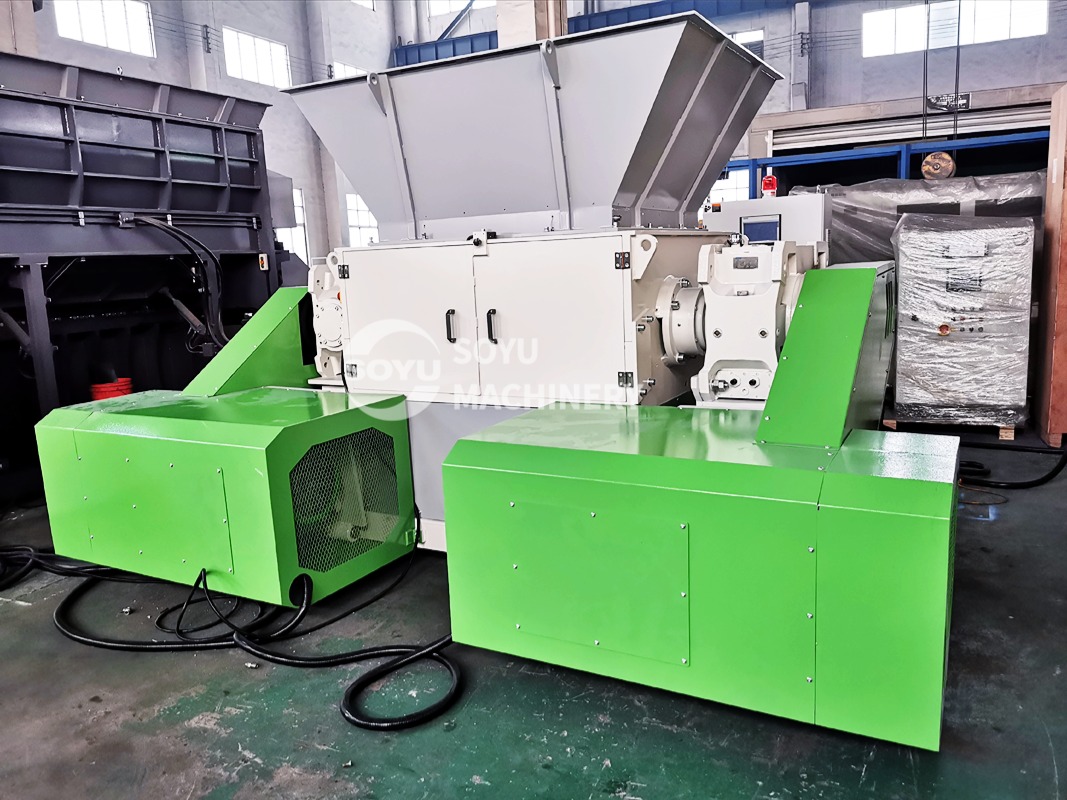

High-Precision Sizing: Features a robust screen system ensuring a uniform output size of 40–100 mm.
Versatile Material Processing: Flawlessly handles PP/PE films, agricultural plastics, woven sacks, jumbo bags, and baled soft plastics.

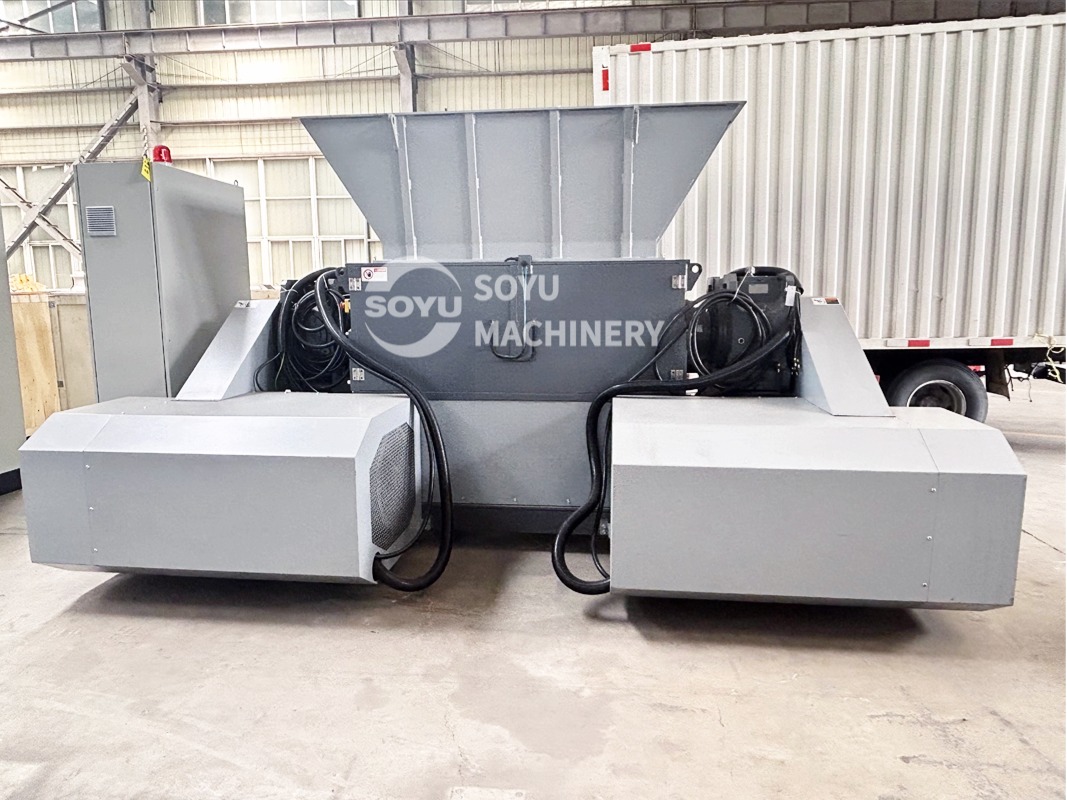

Flexible Production Scalability: A wide range of models delivering a throughput capacity of 500 to 6,000 kg/h.

Get the latest quote

WATCH VIDEO

Description

Product Core Advantages:

Dual Counter-Rotary Feeding: Eliminates the traditional pusher; utilizes twin inward-biting shafts for automatic and continuous grabbing, completely preventing flexible materials from bridging or jamming.

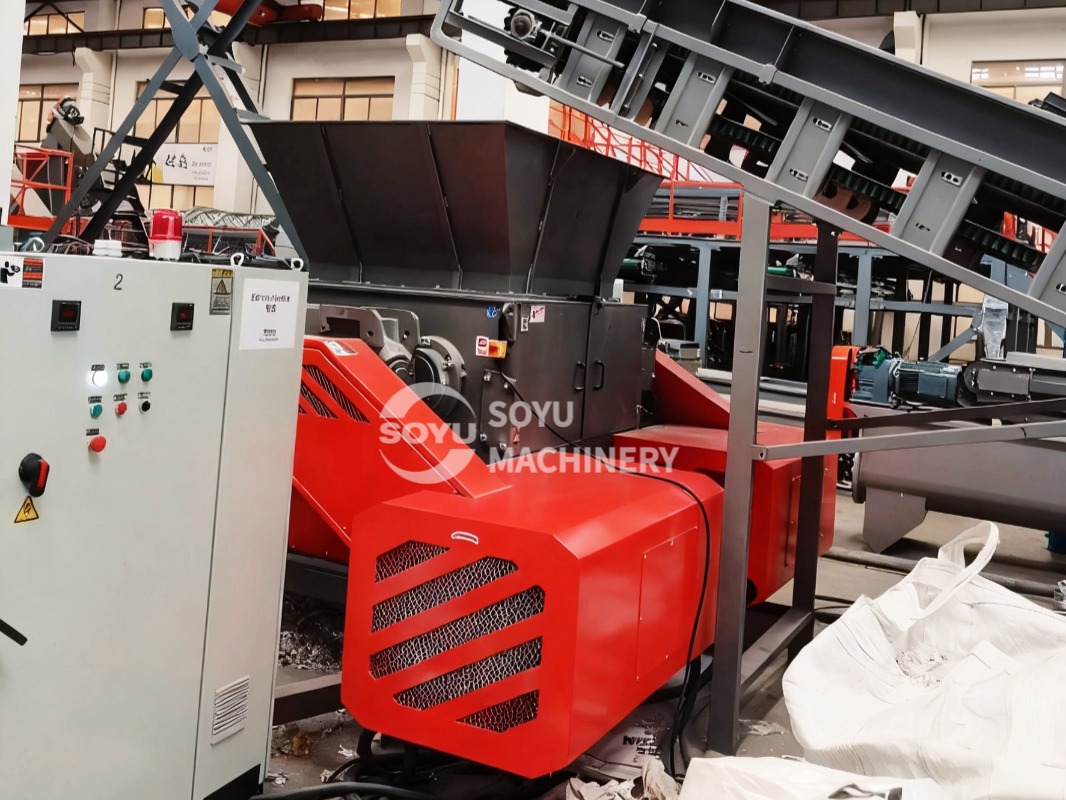

Staggered Array & Anti-Winding: Features ultra-dense, interlocking blades acting against high-precision stator knives for high-frequency scissoring, chopping film instantly to stop any rotor wrapping.
Titanium-Coated 4-Way Blades: Crafted from premium CrMoV tool steel with an industrial Titanium Coating to heavily resist abrasive sand; each square blade features 4 indexable corners for a 4-fold lifespan.

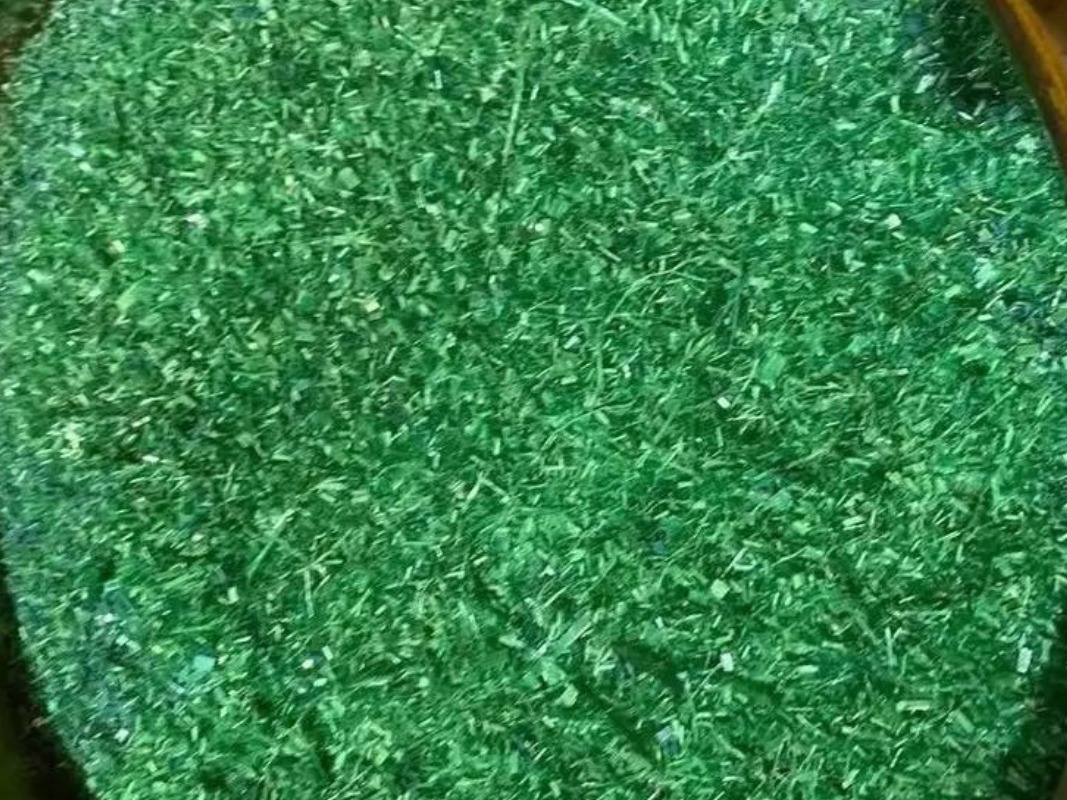

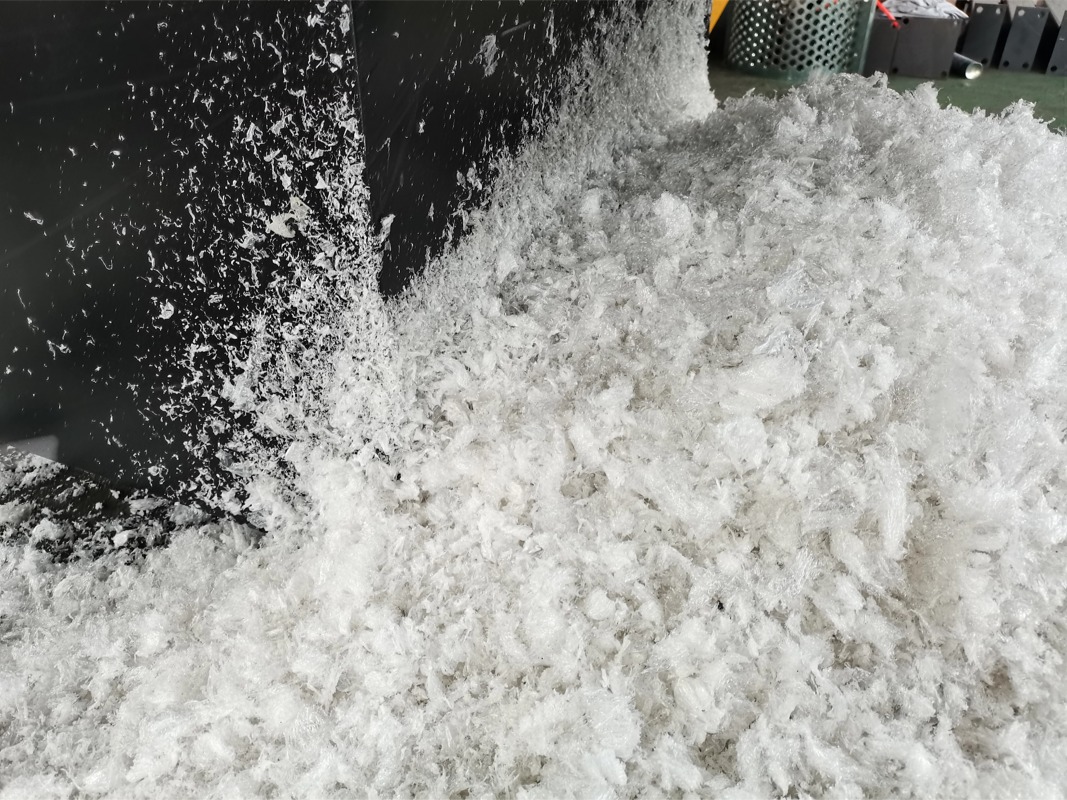

Integrated Screen for Sizing: Fitted with a modular bottom screen that holds material inside until it fits the pre-set mesh size (\(40\text{ mm} - 100\text{ mm}\)), delivering perfectly uniform and consistent flakes.
Outward-Offset Bearing Housing: Mounts heavy-duty bearings entirely outside the cutting chamber with an isolation channel, blocking static dust and slurry water from contaminating seals and bearings.
Smart PLC Auto-Reversal: Integrated with an intelligent control system that triggers a millisecond-level Automatic Reversal upon current overloads or tramp metal ingestion, resuming forward work automatically.
Rubber Shock Absorber Protection: Implements industrial-grade rubber dampers behind the heavy guards to cushion peak torque spikes, safeguarding the hardened-surface gearbox from mechanical fatigue.

Features:


Screen Special screen can be chosen according to different materials.	Shaft Two counter-rotatory shafts are equipped withspecial blades. The shaft location ensures automatic feeding.Harden-processed shaft extends usage life. No pusher device structure,close arrange-ment of rotor blades to avoid material winding. Stator blades with assembled structure,thesame size as rotor blades, have strong versatil-ity and reduce maintenance cost. Blade is made of high quality CrMoV steel,with titanium coating,which efficiently extendsusage life.	Transmission and guard Large-base and hardened gearbox increasessafety factor and ensures stable operation for along time. Lengthened design of main shaft,outwardoffset of bearing seat internal material outlet,which all effectively reduce the influence on oilseal and bearing. Rubber shock absorber minimizes shock andabsorbs impact, which makes shreddingstable and gearbox engine safe. Protective cover keeps operator safe.

APPLICABLE MATERIALS:

Our anti-winding shredder is universally engineered to process a wide spectrum of flexible and soft plastic waste, including but not limited to:

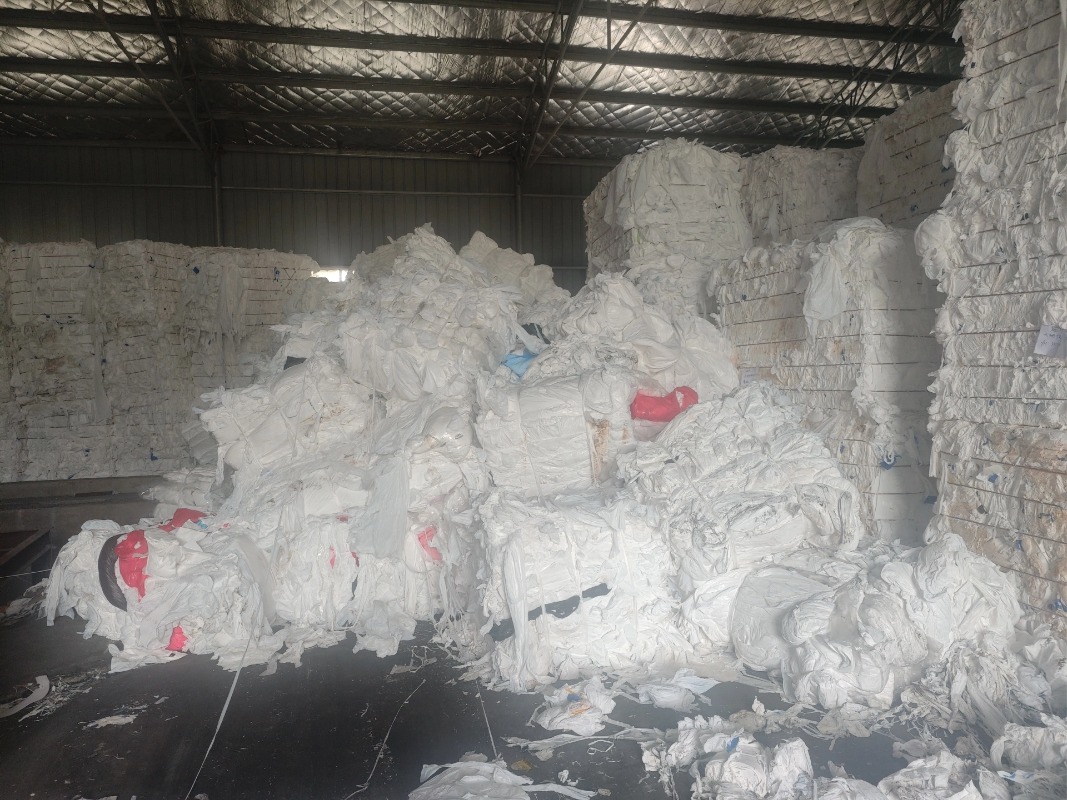

Films: Industrial stretch films, agricultural greenhouse films, printed packaging films, and PE/PP film rolls.
Woven Plastics: PP woven bags, laminated woven sacks, cement bags, and heavy-duty fertilizer bags.
Bulk Packagings: Jumbo bags, big bags, tonnage bags, and bulk cargo FIBCs.
Polymer & Technical Films: High-performance polymer films, multi-layer co-extruded barrier films, functional polymer sheets, and engineering plastic films (e.g., PVB, EVA, TPU, and PEEK films).

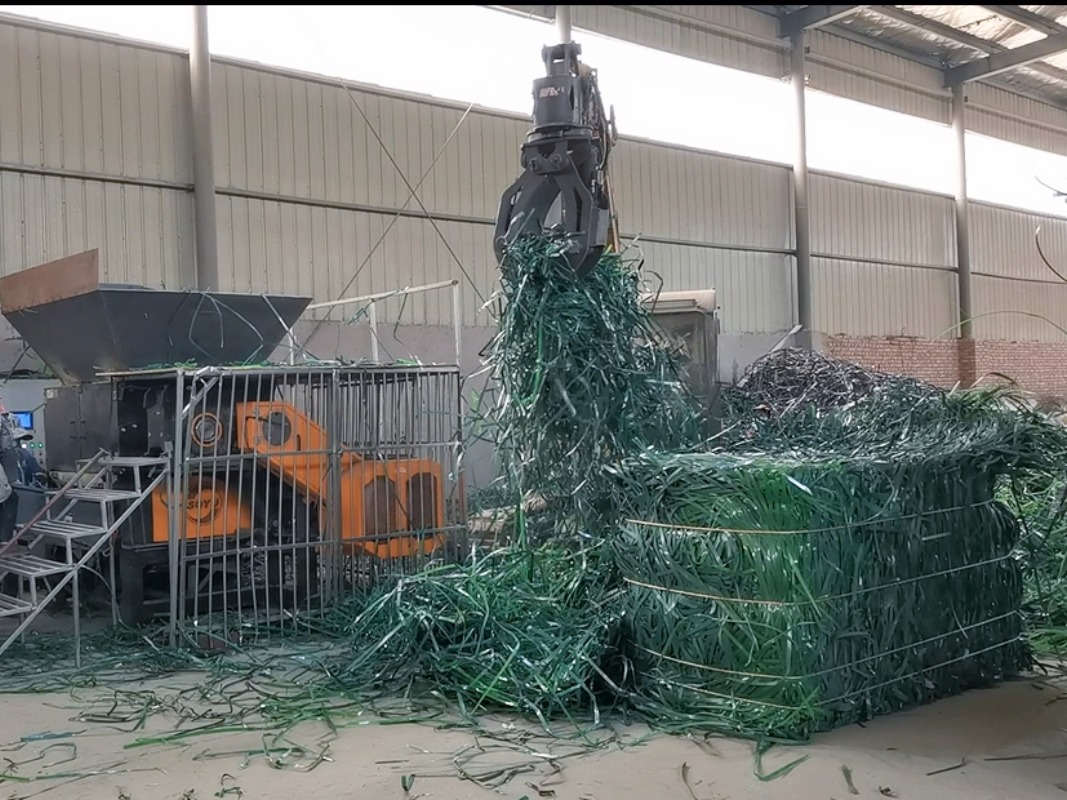

Strapping & Bands: PET strapping bands, plastic packing belts, and high-tensile strapping coils.
Other Soft Materials: Nylon fish nets, PP raffia ropes, and woven fabric waste.

Parameters:

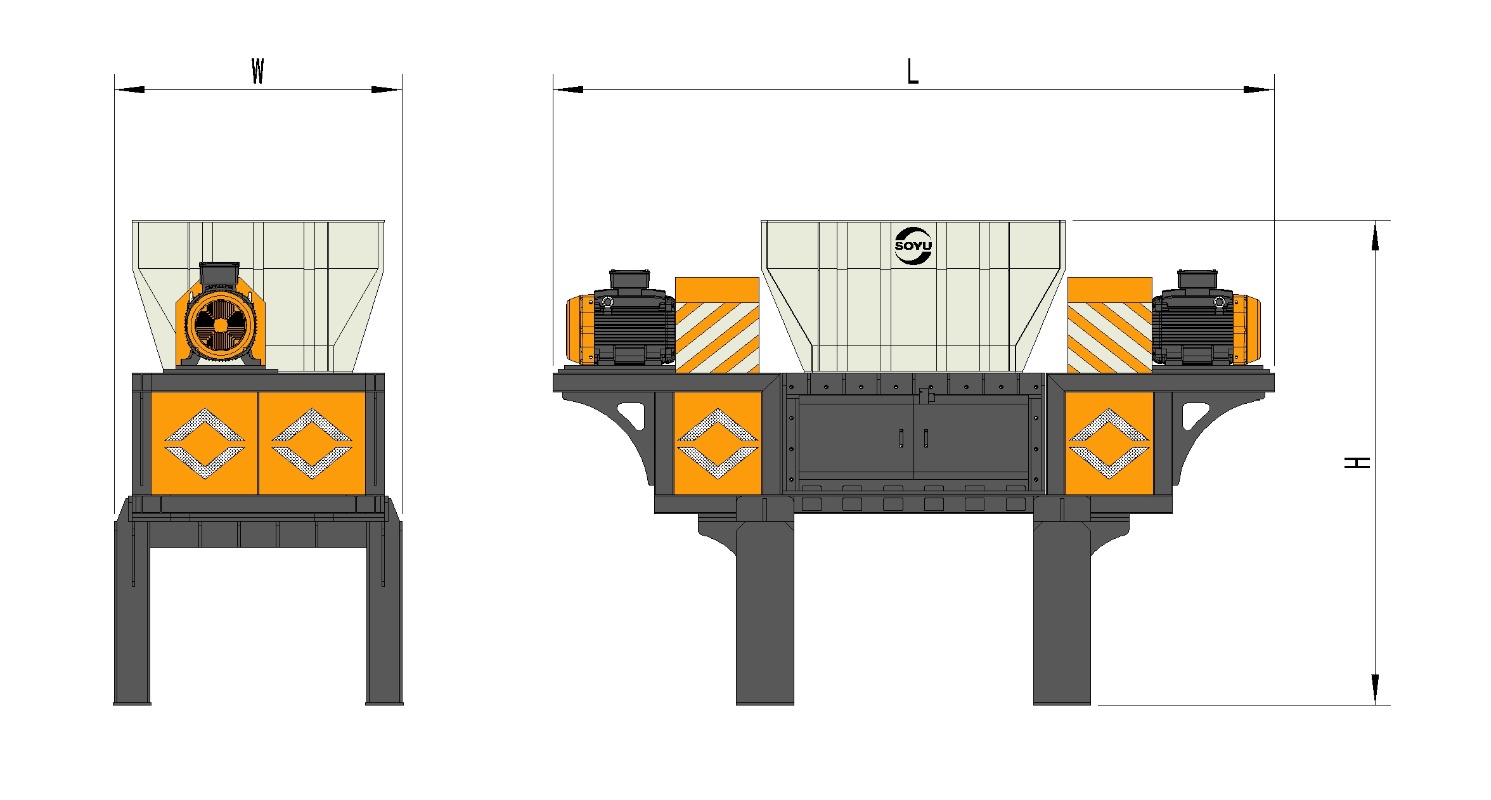

Technical layout drawing of SOYU dual-motor driven plastic film shredder machine showing length (L), width (W), and height (H).

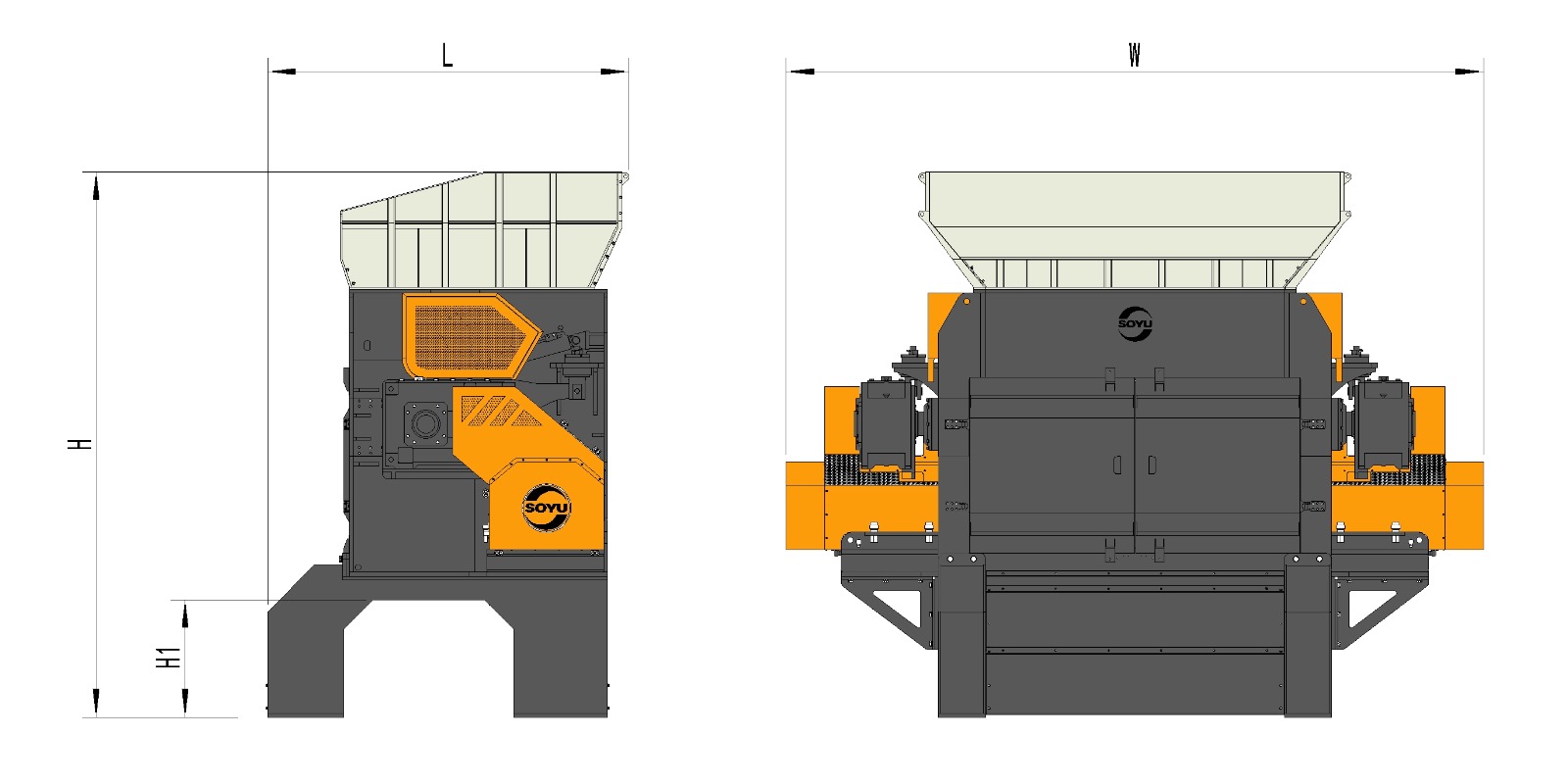

Side and front view engineering drawings of SOYU industrial shredder indicating hopper dimensions and discharge clearance height (H1).

Model	SRSF750	SRSF900	SRSF1100	SRSF1400	SRSF1600	SRSF2100
Rotation diameter（mm）	Φ400	Φ400	Φ400	Φ400	Φ480	Φ480
Cutting chamber（mm）	1100x768	1100x900	1100x1131	1100x1362	1220x1593	1220x2055
Number of rotor blades （pcs）	39X2	45X2	57X2	69X2	81X2	105X2

Cases:

Certified Quality & Premium Components

SOYU machinery meets the highest industrial standards. Our industrial plastic film and PP woven bag shredding machines are ISO 9001 and CE certified for maximum safety and performance. To ensure 24/7 reliability, we integrate premium world-class components from industry leaders like Siemens, Schneider, and NSK.

FAQ | SOYU Machinery Industrial Plastic Film & PP Woven Bag Shredder Machine

Q1: Why does this SOYU machine eliminate the traditional hydraulic pusher (ram)?

A: Traditional single shaft shredders rely on a hydraulic pusher to force materials against the cutting rotor. However, when handling high-tenacity bundled films or baled jumbo bags, materials often get squeezed and jammed in the pusher gaps. The SOYU INDUSTRIAL PLASTIC FILM AND PP WOVEN BAG SHREDDER MACHINE implements a revolutionary no-pusher design. By utilizing two counter-rotary shafts, it leverages aggressive inward biting forces to achieve automatic and continuous material grabbing (Automatic Feeding). This re-engineering simplifies the machine structure, saves hydraulic power consumption, and completely prevents flexible film from bridging or jamming.

A: Traditional single shaft shredders rely on a hydraulic pusher to force materials against the cutting rotor. However, when handling high-tenacity bundled films or baled jumbo bags, materials often get squeezed and jammed in the pusher gaps. The SOYU IND

A: They differ completely in size control and shearing frequency:

Output Size Control (Screen): Generic double shaft shredders do not have a screen, discharging irregular long strips or chunks for rough reduction. However, this specialized INDUSTRIAL PLASTIC FILM AND PP WOVEN BAG SHREDDER MACHINE features a precise curved screen at the bottom, ensuring flexible materials are repeatedly sheared until they can pass through the mesh, delivering uniform flakes (\(40\text{ mm} - 100\text{ mm}\)).
Blade Design: Generic shredders use wide, interlocking disk blades with larger gaps. This machine features closely arranged small blade blocks interacting with high-precision stator knives, creating a dense, high-frequency scissoring action that stops flexible films from slipping or stripping.

Q3: Plastic films and woven bags easily wrap around the rotor. How does this machine prevent material winding?

A: We solve the wrapping and binding problem through two synchronized self-cleaning designs:

High-Density Staggered Blade Array: The rotary knives are staggered tightly along the dual rollers. Flexible films are chopped into tiny fragments the millisecond they feed into the cutting zone, leaving no chance to form long strands that could bind the shaft center.
Integrated Stator Blades: The assembled stator knives fit tightly against the roller contours, acting as structural scrapers that continuously strip off and chop any film residues adhering to the shafts during rotation.

Q4: Agricultural films and jumbo bags are often heavily contaminated with sand and grit. How do you handle rapid blade wear?

A: To withstand harsh recycling conditions, SOYU provides two structural enhancements:

Premium Material & Titanium Coating: The cutting blades are crafted from premium CrMoV (Chromium-Molybdenum-Vanadium) high-strength tool steel, enhanced with a specialized Titanium Coating. This significantly upgrades abrasion resistance and impact tolerance compared to bare steel blades, shielding them from gritty sand.
4-Way Indexable Design: Each rotary blade features four symmetrical cutting corners. When one edge wears down, simply loosen the bolt and rotate the square knife \(90^{\circ }\) to expose a brand-new edge. Each blade can be reused four times, drastically cutting down consumable replacement costs.

Q5: Will the plastic dust or dirty washing water generated during fine shredding damage the gearbox and bearings?

A: Absolutely not. SOYU implements an outward-offset bearing seat design. The heavy-duty bearing housings are mounted entirely outside the shredding chamber and equipped with dedicated discharge slots. Whether you are processing bone-dry film powder with static electricity or wet materials drenched from washing lines, impurities cannot migrate past the seals into the bearings or gearbox, securing stable 24/7 heavy-duty operations.
